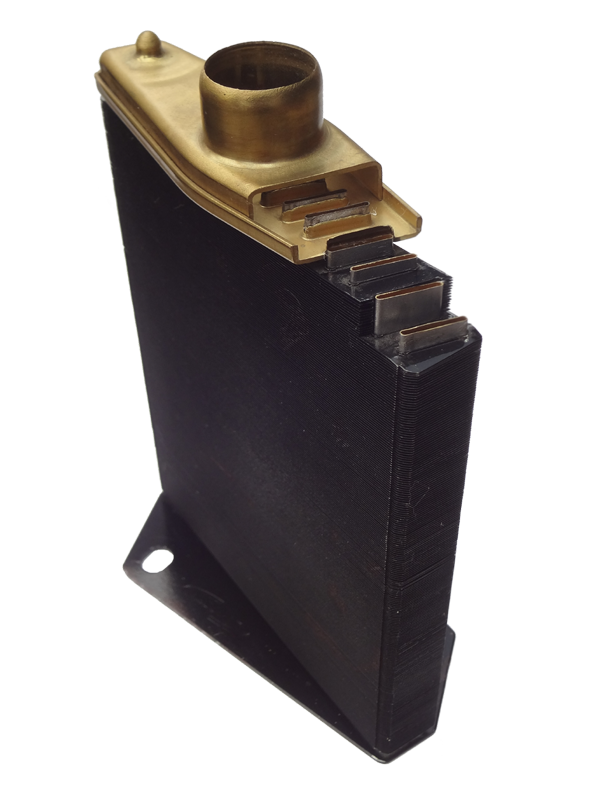

Folded Core Radiators

Slide1

PROCORE RADIATORS

Only the best materials and workmanship go into each and every

Procore Radiator

Click for Details

Slide 2

PROCORE RADIATORS

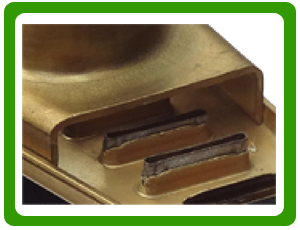

Increased Tube to Header Contact

Through deep draw technology the contact area between the tube and header has been doubled, coupled with a higher tin/lead solder used to assemble them provides the strongest construction available. Delivering long leak free service from the radiator.

Slide3

PROCORE RADIATORS

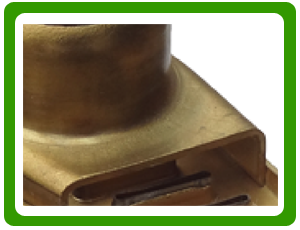

Strong Heavy Wall Tanks

Both the end tanks and header plates are 30% thicker than the originals. This increase in thickness provides extra protection from the constant vibration-pounding and abrasion found in so many applications.

Slide4

PROCORE RADIATORS

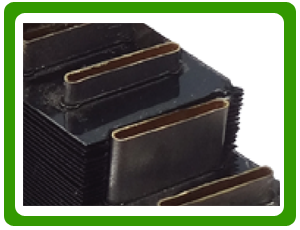

Heavy Wall Welded Tubes

With all of the weight and vibration of each individual core being directed to the tube/header area, the strength of the soldered joint between them is critical.

Slide5

PROCORE RADIATORS

Thicker Precision Fitted Centermounts

Another upgraded feature is the center mount of the radiator. This component is used to resist core flexing and to cut down harmfull vibration. It's a critical component to the radiators stability. The center mount in the Procore Radiator had been increased in thickness by over 20% to provide maximum support to the core while delivering more protection from vibration.

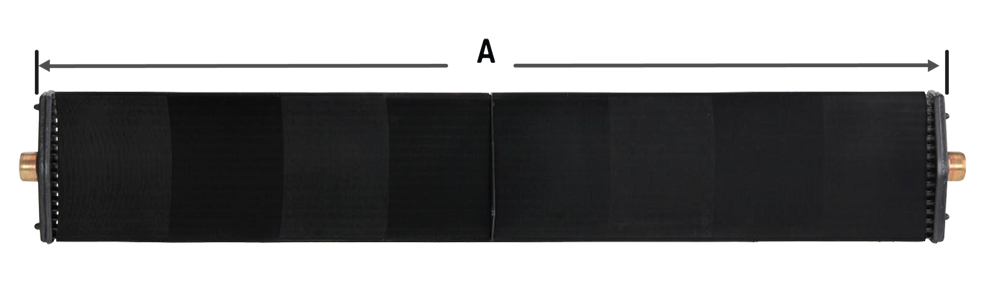

View Sizing Chart
